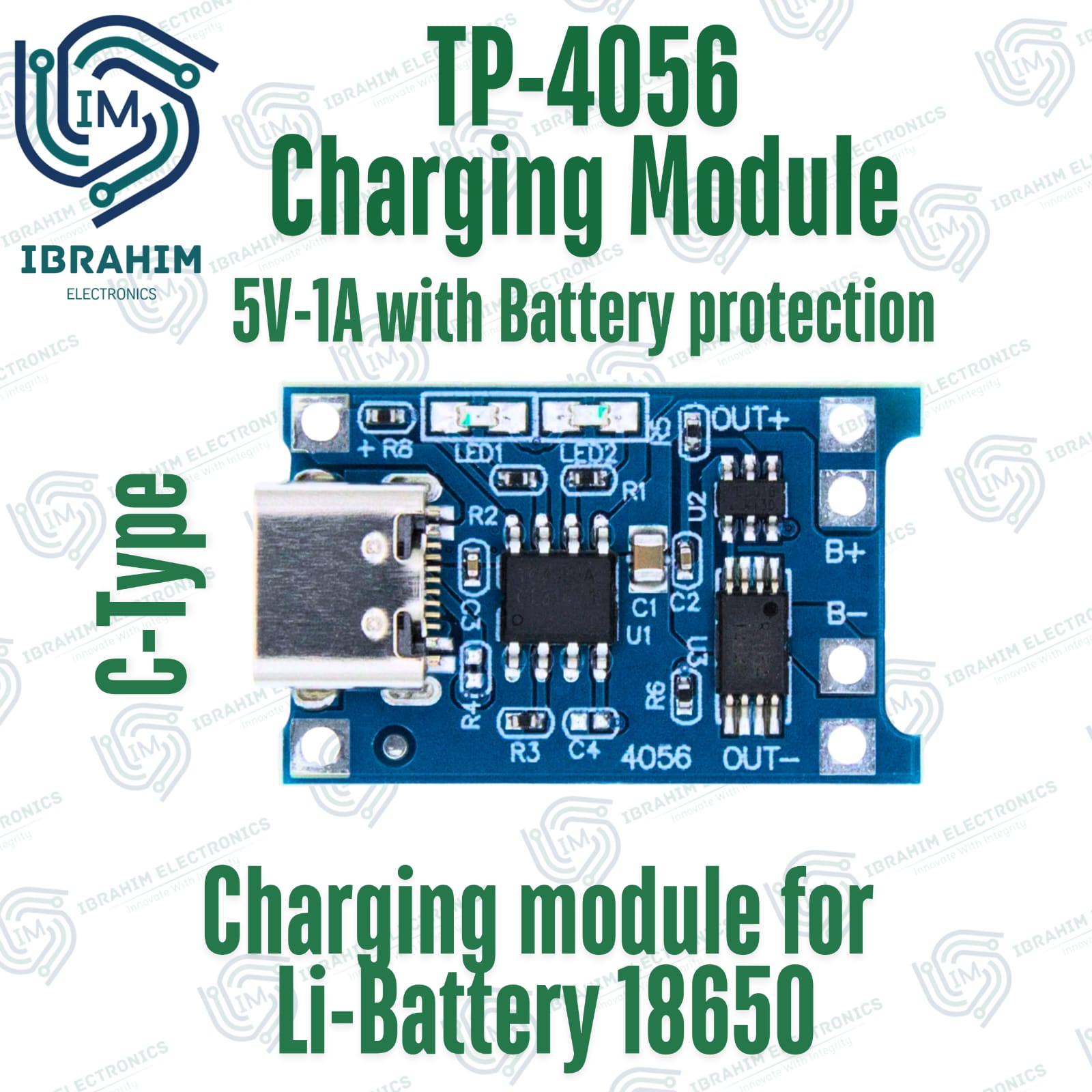

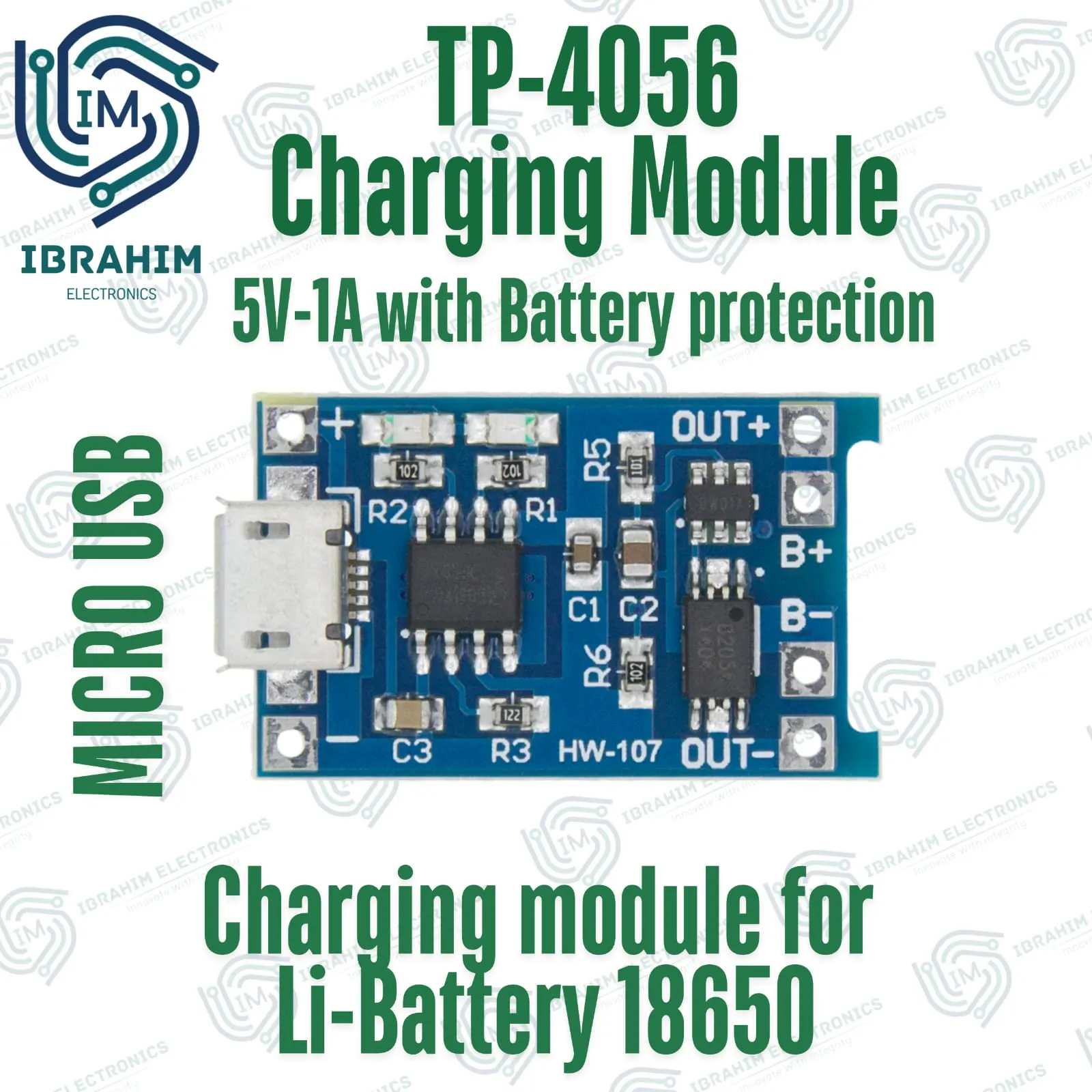

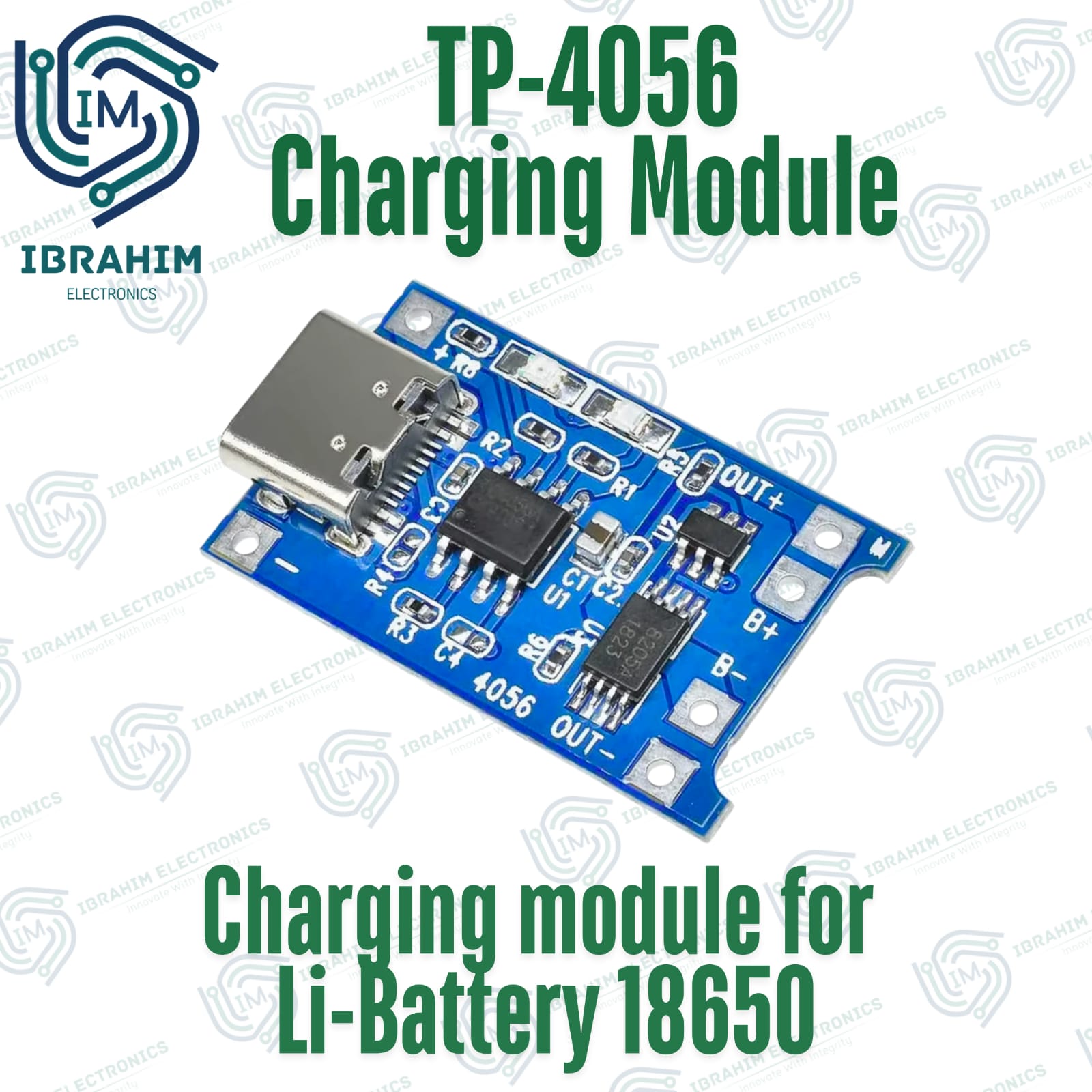

Type-C and Micro Mini 5V1A 18650 TP4056 Lithium Battery Charger Module Charging Board With Protection Dual Functions 1A Li-ion
Type-C and Micro Mini 5V1A 18650 TP4056 Lithium Battery Charger Module Charging Board With Protection Dual Functions 1A Li-ion - Image 2
Type-C and Micro Mini 5V1A 18650 TP4056 Lithium Battery Charger Module Charging Board With Protection Dual Functions 1A Li-ion - Image 3

Type-C and Micro Mini 5V1A 18650 TP4056 Lithium Battery Charger Module Charging Board With Protection Dual Functions 1A Li-ion

Original price was: ₨90.00.Current price is: ₨80.00.

TP4056 1A Li-ion Battery Charging Module

  • 🔌 Micro USB / Type-C / Mini USB input – easy USB power connection

  • 🔋 For 3.7V Li-ion/LiPo batteries

  • ⚡ CC/CV charging – safe, efficient charging up to 1A

  • 🟢 LED indicators – red (charging), green (fully charged)

  • 🛡️ Overcharge, over-discharge, short-circuit protection (on protected versions)

  • 📏 Compact size – perfect for DIY, Arduino, and IoT projects

  • 🌡️ Operating range – -10°C to +85°C

  • 💯 High-quality, brand new module

Category:
  • ✅ TP4056 IC – Stable 1A Li-ion battery charging
  • 🔌 Micro USB or C-type input – Easy plug & play with USB power
  • 🔋 Suitable for 3.7V Li-ion/LiPo batteries
  • ⚡ CC/CV charging method for safe and efficient charging
  • 🟢 LED indicators: Red = Charging, Green = Full
  • 🛡️ Built-in overcharge, discharge & short-circuit protection (on protected versions)
  • 📏 Compact size – Ideal for DIY, Arduino, and IoT projects
100% brand new and high qualityCharge module:Linear charging.Current:1A adjustable.

Charge precision:1.5%.

Input voltage:4.5V-5.5V.

Full charge voltage:4.2V ± 1%

Led indicator:red is charging Green is full charged.

Input interface:micro USB/mini usb/type-c usb

Work temperature:-10° to +85°.

Inversed polarity:NO.





Weight 0.3 kg
